HFsat, an HF Communications Relay Cubesat

Bob Bruninga, WB4APR, Instructor, US Naval Academy (last name at usna dot edu)
Midshipmen students: Randell, Scheiner, Cho, Mische, Giornelli (class of 2017)

Current Status - Limbo: The Airforce Space Test program has declared that there be no more Naval Academy student Amateur Satellites submitted for possible DoD launch via the Space Test Program. So the HFSAT was removed from the annual Space Experiments Review Board for 2017. This is a serious misunderstanding of the value of the hundreds of Amateur Radio satellites as educational tools to provide good science and student experimentation while learnign about small spacecraft design.

Antenna Deploy Test: An HF Antenna deploy test was conducted in Mid February 2017. See results.

HFsat: Is a project to demonstrate the viability of HF satellite communications as a backup communications system using existing ubiquitous HF radios that are usually a part of the communications suite on all small mobile platforms such has ham radio mobiles and portable operations frequently used by Amateurs in support of disaster and emergency response communications. The HFsat will be gravity gradient stabilized by its long full size 10 meter band halfwave HF dipole antenna with tip masses as shown here at left. A notional sketch is shown at right to show body mounted solar cells for power and how the nitinol wire antennas are constrained at launch. HFsat will continue the long tradition of small amateur satellites designed by Aerospace students at the US naval Academy. The uplink is at 21.4 MHz and downlink at 29.42 MHz as shown in the table below right..

HFSAT is just our latest of our many prior satellite projects:

OUTNET a global APRS channel on 3 GEO satellites!
PCsat-1 in orbit since 2001 semi-operational
PCsat-2 Flew on outside of ISS for 1 year and then returned home
ARISS on the ISS since 2007
Psat Operational since May 2015
BRICSAT-1 launched with PSAT, but insufficient power budget
QIKcom-1 IS ON ISS, but activation blocked by FCC SNAFU
QIKcom-2 with APRStt/Voice for launch Summer 2016
PSAT-2 With APRStt/Voice and PSK31 for launch spring of 2017
BRICSAT-2 APRS digi and thruster experiment for launch spring of 2017
ASTARS missions: Prior APRS missions on other spacecraft, ISS, Shuttle and MIR

The unique features of HFsat shown in the CONOPS image diagram below, are the HF transponder for HF users and the existing global network of participating internet linked ground stations for the telemetry command and control. Another possible experiment is watching how the ionosphere reacts when HFSAT flies near the megawatts of ionosphereic heating conducted from the new HF atnenas added to the 1km dish at Arecibo (see bottom of page).

Low Cost Comms Board: Another feature of this cubesat is our development of a standardized cubesat VHF communications card (shown below right) based on the popular Byonics MTT4B all-in-one APRS Tiny-Track4 module for telemetry, command and control. Standardizing the COMMS board makes it easy for us to add the HF Transponder mission into our standard cubesat bus without an all new start. The SATT4 block diagram is linked below. The students are working with Bill, N6GHZ on the HF transponder card.

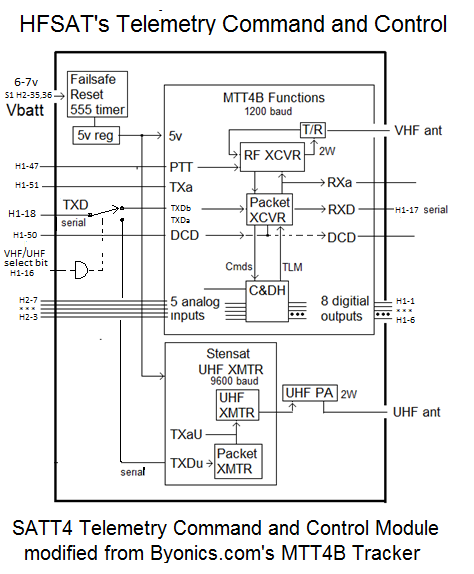

  • The SATT4 Block Diagram

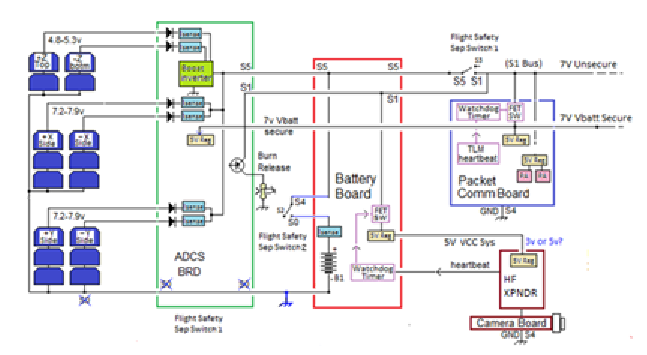

  • The EPS block diagram
  • The Integrated Torque coils on the solar side panels.
  • The Self Regulating Charge Regulation

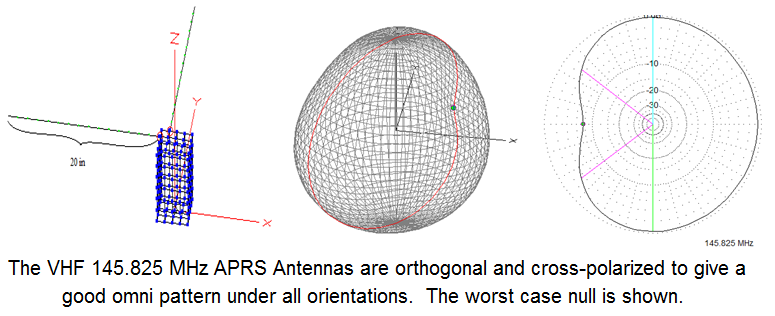

  • The VHF Cross Polarized omni directional anntennas
  • The Combined effect on VHF of HF antenna
  • The Receiver FIlter

    . .

    OVERVIEW: . HFSAT is a project being investigated and designed by a group of students at the Naval Academy looking for a ride to space that will give it a life span of several years. It continues the PCsat(2001) and PSAT-1(2015) and PSAT-2 (2016) missions but extends it to mobile and portable operators that have Ubiquitous HF radios as well. The HF transponder can relay any waveform already used on HF (that is not corrupted by Doppler) making it a seamless transition to use the satellite when HF propagation is not available.

    Operations under ITU Rules: HFsat will operate under the ITU rules of the Amateur Satellite Service since not only does that service currently have allocations for satellite relay on HF, but it is also the only service with the nearly a century of knowledgible operators experience with the HF bands under all conditions. Should the system prove viable, and should other services desire to use the transponder technology, then the lengthy process to obtain Federal HF satcom allocations could be considered. See how HFsat design and operation fit entirely within the ITU International Amateur Radio RULES. The FCC does not issue licenses for spacecraft operating in the Amateur Satellite Service (see public notice) because the satellite is operated under the license of the individual amateur radio operator who has filed the Advance Notice(API) to the FCC and ITU and who is responsible to assure that both the design and operation are within the rules of the ITU as interpreted by the IARU. Our licensed control operator for HFSAT is Todd Bruner, WB1HAI.

    HF Uplink . . . . .21.40 MHz, 30 kHz wide multi user bandwidth
    HF downlink . . 29.42 MHz, the 30 kHz wide downlink passband
    HF Duplexer: . . The schematic at right suggests the design needed for sharing the HF dipole:

    HF Transponder Experience: Although some of the very early Amateur Radio satellites used HF transponders, the Russians carried forward with that design well into the ninties. The Naval Academy began experimenting with Amateur HF uplinks on its PCSAT-2 experiment that flew on the outside of ISS in 2007 and then on PSAT which began operating in 2015. The problems with high Doppler on such linear transpodners was significantly solved on these transponders by bringing the downlink down in FM as just a single multiplexed 3 kHz audio waterfall. This way, the UHF doppler was not added to the user signals, and the FM Doppler could easily be tracked during a pass as shown at right.

    In HFSAT, the Doppler impact is minimized by using an inverting transponder. This way the doppler on both the uplink and downlink are not added to gether but only the difference in frequency results in Doppler. With operations at 21 and 29 MHz, the carrier frequency delta is only 8 MHz and so the worst case Doppler is only about 2 Hz per second and the nominal doppler change is on the order of about 0.3 Hz per second. This is within the frequency following algorithms of most HF waveforms. Compared to over 30 Hz per second on a typical UHF satellite.

    Doppler Compensation: Fortunately, as HF was implemented on PSAT, Andy, K0SM wrote a Doppler pre-compensation algorithm that not only lets a radio user run full-duplex with a separate HF transmitter radio, but it also pre-compensates the uplink for Doppler as shown here. The Doppler compensated uplink comes down as a straight track while others are showing Doppler. Most PSK31 clients can compensate for up to 1 Hz/sec of Doppler on the downlink, but Andy's program makes your signal constant. Other users without compensation, can drift from 1 to 6 Hz per second depending on where they are relative to the track of the satellite.

    LIVE Telemetry Downlink for HFsat will also be captured via ground stations in the worldwide ground sttation network where data is captured by Steve Dimse's, K4HG original pcsat.findu.com web page. The packet link is a secondary mission compared to the HF transponder on this spacecraft. The five Telemetry Equations (after the serial number) in standard APRS telemetry format are:

    Format: . . . . . T#SSS, VVV, I I I, XXX, YYY, ZZZ, 00011X00

    VVV. . . Bus Volts in hundredths
    I I I . . . . Bus Current in mA
    XXX. . . Temp +Z where T = -1.26E-6*X^3 +0.0028*X^2 -2.215*X + 625
    YYY. . . Temp - Z where T = -1.26E-6*X^3 +0.0028*X^2 -2.215*X + 625
    ZZZ . . . TempBat where T = -2.57E-6*X^3 +0.0061*X^2 -5.149*X +1475
    In the 00011X00 field, only the X has meaning. 0 = DIGI ON, and 1 = Digi off

    Unique HF Link Considerations: There is a unique synergy between the vertically stabilized satelliite HF antenna pattern and the geometry of a typical Low Earth Orbit (LEO) pass as shown above. Although there is a null directly below the satellite and overhead the typical ground station using a vertical antenna, the time the satellite is in this null area is very small compared to total pass times. When low on the horizon, both the satellite and the user antennas are in their main lobes providing maximum gain at the distant horizons. At the higher elevations, the satellite is 6 dB to 10 dB closer, thus significanly making up for the reduced antenna pattern geometry. In addition, the duration of satellite pass times above 60 degrees is on the order of 2% or less of total access times and not worth any complexity to work around it.

    HF SATCOM User Antenna: It is important to note that an HF satellite operates with a much improved link budget (20 dB) because of the lower frqeuency than UHF (though a lot of that gain is lost in the presence of the higher noise floor on HF freuqncies). But with that link advantage and with the larger size of the antennas (dipoles or verticals) the typical user station and spacecraft use omnidirectional antennas. This means there is no requirment for tracking antennas. If the satelilte is in view, it should provide relay service. The most practical HF user antenna is a vertical OMNI (no moving parts to wear out or require rotators) and it has good gain from the horizon upward in all directions.

    BACKGROUND: . HFSAT follows on to several previous student project satellites which use our VHF command/control/telemetry transceiver and our well established volunteer ground stations. Adding the HF transponder is relativley straight forward needing only the transponder cards and the added HF antenna. The image at right shows the typical test equipment used during integration testing of one of our 1.5U cubesats.

    Operations in the Amateur Satellite Service: All of the transponders on PSAT are operated in the Amateur Satellite Service to encourage amateur radio students, educators and experimenters around the world to contribute additional satellities to this constellation on 145.825 MHz or to build interesting self motivated remote sensors suitable for the uplink channel. See our ocean or bay oceanographic data buoys for examples. This kind of Amateur Radio experimentation fits well in the ITU rules (see PSAT-2 justification) for operating in this service and well serve our educational and outreach goals for student projects encouraging young people to be interested in Science, Technology, Engineering and Math.

    Prior HF Transponder Experience: We have flown HF uplink transponders with UHF downlinks on two of our previous cubesat missions. These experiments accepted PSK31 Multi-user FDMA uplinks with a UHF FM audio waterfall downlink as flown on PSAT-1 and PCSAT2 missions. See the full PSK31 design concept here. These text messaging transponders allowed messaging between up to 30 modest ground stations simultaneously. In the example waterfall display above, 10 users are clearly visible. Each user transmits a 31 Hz wide narroband transmission within the 3 kHz wide transponder, and all can be seen simultaneously via the UHF FM downlink. Uplink stations do not need gain antennas on the HF uplink but can use a vertical monopole antenna and 75 Watt SSB transmitter to give the transmit antenna profile as shown above. To calculate the PSK31 link budgets we combined the user TX antenna gain profile with the variation in range gain from the horizon to over 60 degree elevation as shown here at right. The combination gives an uplink power variation per user of less than +/- 4 dB over 90% of the duration of the pass.

    HFSAT Differences: But these prior experiments required users to use the HF for uplink and then to have a completely different downlink on UHF that required high gain UHF antennas and tracking systems. The HFSAT transponder, will both uplink and donwlink in the HF bands so only one radio and only an omni antenna is used.

    Operation Simplicity: In addition to the simplicity of single-existing-radio operation, and the use of non-tracking omni antennas, a third simplicity that will be demonstrated in this project is the ability to use simple manual (no PC needed) prediction methods of satellite access times. Back in the 1960's at the start of the Amateur Satellite Service, no one had computers and all satellite predicitons were based on simple paper prediction devices such as the OSCARLOCATOR shown here. A polar map of the world had two plastic overlays. one was an overlay of azimuth and elevation angles centerd on the ground users's location, and the other was an overlay of the orbit track. All that was necessary to predict the satellites pass times was the equator crossing time and longitude. Rotatin the ground track overlay pointer to that longitude equator crossing would then be able to show an entire day's worth of passes.

    HFSAT Position Reporting: It is also possible to program HFSAT to downlink its position once every minute to users to make them aware of its position. Further, knowing its position, it can be programmed to initiate one-way downlink transmissions to users who may be in radio silence yet need to receive vital information. We can break the earth into multiple oeprating areas and downlink any customisec bulletins over those areas.

    Gravity Gradient: With the full length of the HF dipole wire whips, we hope to maintain a vertical attitude of the spacecraft via Gravity Gradient. Calculations from both Samir Rawashdeh of U-Michigan and Hanspeter Schwab of the Colorado Center of Astrodynamics Research both suggest the plot of restoring torque versus tip mass shown at right. On that, we have indicated our estimates of disturbance torqures. This suggest a 2-to-1 factor tip mass would need to be about 34 grams or the mass of six quarters.

    The worst stray torque is from the solar panel circulating currents (500 mA in a loop on the side panels). Plus worst case alignment of the 5 NiCd cells with their measured permanent magnitism. We think that both of these can be mitigated with a different layout of the solar panel PCB and degausing of the NiCd cell cases. If we can get this down an order of magnitude, then the tip mass could be on the order of a dime (3g).

    Some Design Background: Until we begin to develop the design for the specifics of HFSAT, the links below show some of the design approaches we have used on previous cubesats. These will be updated with HFSAT design data when available.

  • Burn Resistor constraining 4 antennas and the 3rd inhibit switch via nylon line
  • Skeletal View showing equator ballast to maintain Z axis inertia
  • Three Inhibits showing 3 inhibits and unique solar panel wiring
  • Orbital Decay and Orbit Life prediction
  • Release Resistor design showing tied nylon line on Nitinol antenna wires
  • Antenna Detail shows how 2 UHF, one VHF and 1 72" HF antennas were constrained

    . . .

    Arecibo HF experiments: There is the potential for Amateur Radio Operators to gain some science observations when HFSAT flies through the controlled man-made ionosphere heating experiments conducted from the 1km dish at Arecibo, PR. Any observed anomolies of the Amatur's HF propogation through the HF transpodner on HFSAT may be correlated to the nearness to the RF heated ionosphere above Arecibo. THe images above show the added HF feed on the 1km dish that radiate at 5 and 8 MHz as detailed here.
